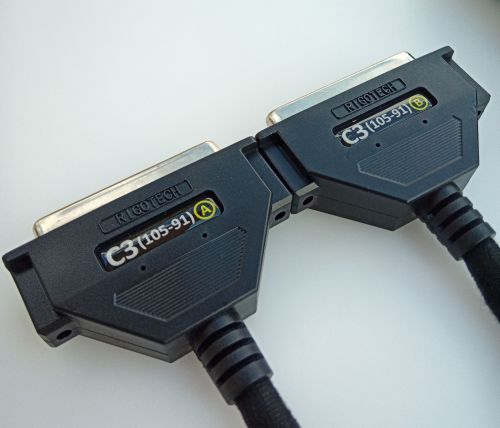

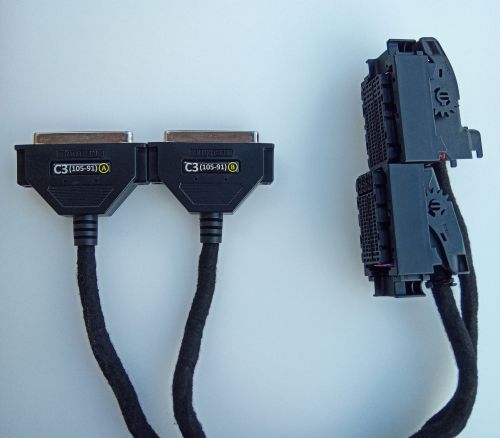

C3 Cable
(105-91pin)
The quickest, safest, most convenient, and best-priced bench cable — compatible with 842 vehicles!
The C3 Cable supports 43 types (and 63 wiring variants) of many ECUs, including EDC17, MD1, MG1, ME17, MED17, Denso, Marelli, Kefico, and Siemens-Continental
Cable & ECU search
By clicking on the field, you'll be taken to the search page, where you can filter our full list by cables and search for ECU types.
C3 Cable ECU list (preliminary)
C3 Cable ECU list (preliminary)
On small devices, touch and swipe left or right to see all details!
| ECU brand | ECU type | Ver. | Group |
| Bosch | EDC17.9@ | A | EDC17 |
| Bosch | EDC17.9@ | B | EDC17 |
| Bosch | EDC17C57 | A | EDC17 |
| Bosch | EDC17C57 | B | EDC17 |
| Bosch | EDC17C69 | A | EDC17 |
| Bosch | EDC17C69 | B | EDC17 |
| Bosch | EDC17C69 | C | EDC17 |
| Bosch | EDC17C69 | D | EDC17 |
| Bosch | EDC17C69 | E | EDC17 |
| Bosch | EDC17C74 | A | EDC17 |
| Bosch | EDC17C74 | B | EDC17 |
| Bosch | EDC17C83 | EDC17 | |
| Bosch | EDC17C87 | EDC17 | |
| Bosch | EDC17CP44 | EDC17 | |
| Bosch | EDC17CP55 | EDC17 | |
| Bosch | EDC17CP62 | EDC17 | |
| Bosch | EDC17CP74 | EDC17 | |
| Bosch | EDC17CV52@ | EDC17 | |
| Bosch | MD1CS004 | A | MDG1 |
| Bosch | MD1CS004 | B | MDG1 |
| Bosch | MD1CS004 | C | MDG1 |
| Bosch | MD1CS018 | MDG1 | |
| Bosch | MD1CS069 | MDG1 | |
| Bosch | MD1CS089 | MDG1 | |
| Bosch | ME17.1.1 | ME,MED | |
| Bosch | ME17.7.8 | ME,MED | |
| Bosch | ME17.8.31 | ME,MED | |
| Bosch | ME17.8.32 | ME,MED | |
| Bosch | ME17.8.33 | ME,MED | |
| Bosch | MED17.1.1 | A | ME,MED |
| Bosch | MED17.1.1 | B | ME,MED |
| Bosch | MED17.1.1 | C | ME,MED |
| Bosch | MED17.1.10 | ME,MED | |
| Bosch | MED17.1.11 | A | ME,MED |
| Bosch | MED17.1.11 | B | ME,MED |
| Bosch | MED17.1.61 | A | ME,MED |
| Bosch | MED17.1.61 | B | ME,MED |
| Bosch | MED17.1.61 | C | ME,MED |
| Bosch | MED17.1.62 | A | ME,MED |
| Bosch | MED17.1.62 | B | ME,MED |
| Bosch | MED17.1.62 | C | ME,MED |
| Bosch | MED17.3.3 | ME,MED | |
| Bosch | MED17.3.4 | ME,MED | |
| Bosch | MED17.3.5 | ME,MED | |
| Bosch | MED17.6.9 | ME,MED | |
| Bosch | MED17.7.5 | ME,MED | |
| Bosch | MED17.8.31 | ME,MED | |
| Bosch | MED17.8.32 | A | ME,MED |
| Bosch | MED17.8.32 | B | ME,MED |
| Bosch | MED17.8.32 | C | ME,MED |
| Bosch | MED17.9.9 | ME,MED | |
| Bosch | MEDC17.9 | A | ME,MED |
| Bosch | MEDC17.9 | B | ME,MED |
| Bosch | MG1CS001 | MDG1 | |
| Bosch | MG1CS111 | MDG1 | |
| Bosch | MG1CS163 | MDG1 | |
| Denso | 1JXXX-59052 | Denso All | |
| Denso | 39199-4ADN0 | Denso All | |
| Kefico | CPGPSH2.14.1 | Kefico All | |
| Marelli | MJD9DF | Marelli All | |
| Siemens-Conti | Simos12.1@ | Sie.-Conti. All | |
| Siemens-Conti | Simos12.2@ | Sie.-Conti. All |
ECUs marked with “@” are in beta, they need the to be tested.
C3 Cable pricing
If you don’t have an Express yet, you can only purchase C3 Cable as part of a package.
It’s the most cost-effective option. Here are the best package deals and prices!
